TE Connectivity AMP Connectors

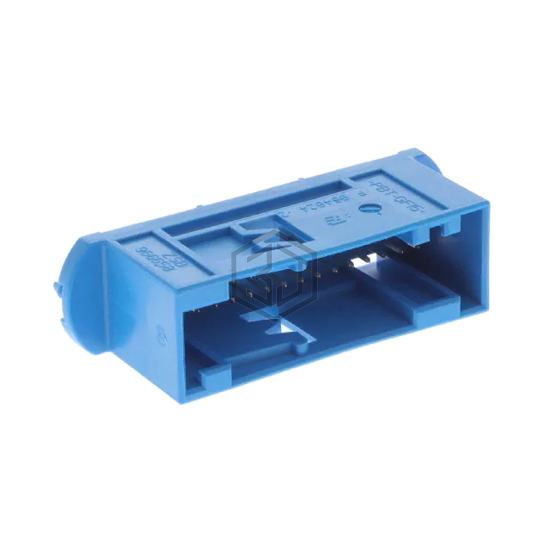

CONN HEADER VERT 32POS 2.54MM
1-966658-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 32POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating 12V, contact material Brass.
In Stock: 112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.268" (6.80mm) |
| Contact Length - Post | 0.098" (2.50mm) |
| Overall Contact Length | 0.500" (12.70mm) |
| Insulation Height | 0.795" (20.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock |
| Operating Temperature | -40°C ~ 110°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Blue |
| Current Rating (Amps) | - |
| Voltage Rating | 12V |
