TE Connectivity AMP Connectors

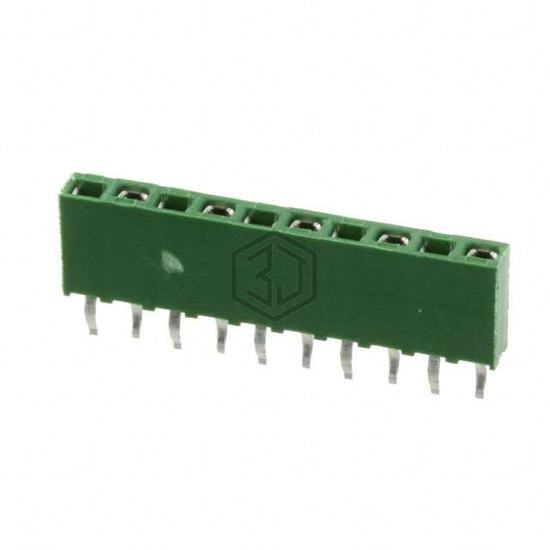

CONN RCPT 10POS 0.1 GOLD PCB
1-966444-0 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 10POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, termination Kinked Pin, Solder, number of positions 10, connector type Receptacle.
In Stock: 209
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Insulation Color | Green |
| Insulation Height | 0.276" (7.00mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 1-966444-0 and get a quote within 24 hours.
