TE Connectivity AMP Connectors
CONN HEADER R/A 42POS 5MM

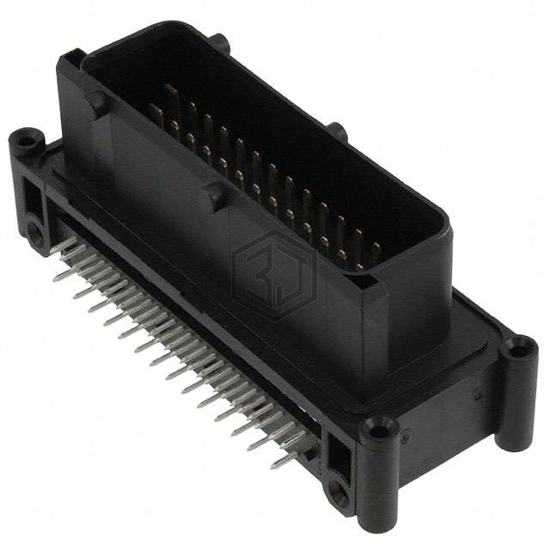

1-963224-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 42POS 5MM. Key specifications: mounting type Through Hole, Right Angle, contact material Copper Alloy, termination Solder, number of positions 42.
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Tab |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 42 |
| Number of Rows | 3 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Lever Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 1.280" (32.50mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 1-963224-1 and get a quote within 24 hours.
