TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 5.08MM

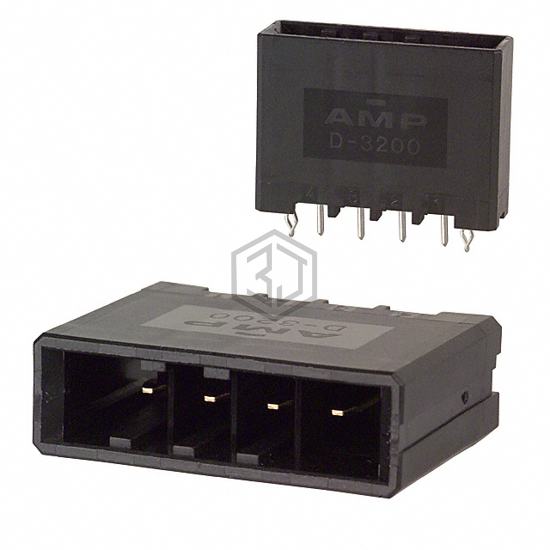

1-917338-3 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 5.08MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 600V, contact material Copper Alloy.
In Stock: 1,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.850" (21.59mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Features | Board Lock |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 600V |
