TE Connectivity AMP Connectors
CONN HEADER R/A 35POS 4MM

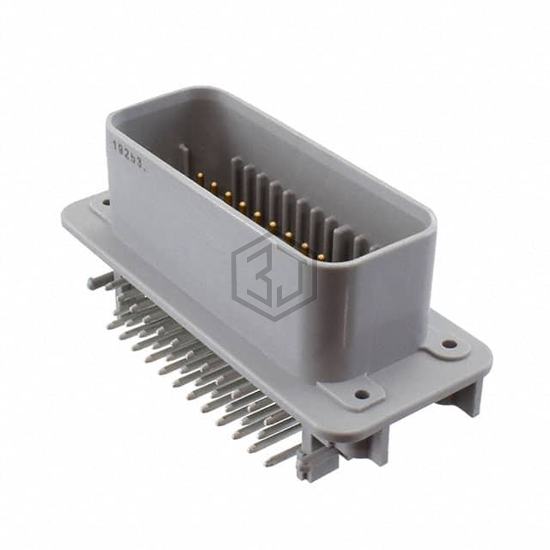

1-776180-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 35POS 4MM. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, operating temperature -40°C ~ 125°C, voltage rating 250VAC, contact material Brass.
In Stock: 613
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.157" (4.00mm) |
| Number of Positions | 35 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold-Palladium |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Sealable |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC |
Submit your RFQ for 1-776180-4 and get a quote within 24 hours.
