TE Connectivity AMP Connectors

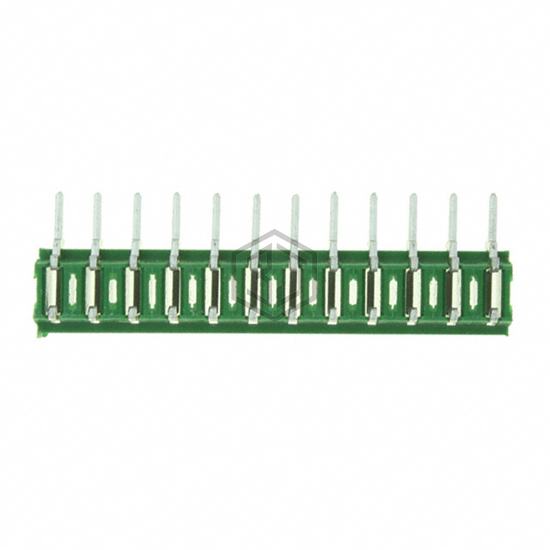

CONN RCPT 12P 0.098 TIN PCB R/A
1-5164711-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 12P 0.098 TIN PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 85°C, termination Solder, number of positions 12.
In Stock: 2,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Green |
| Insulation Height | 0.240" (6.10mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 1-5164711-2 and get a quote within 24 hours.
