TE Connectivity AMP Connectors

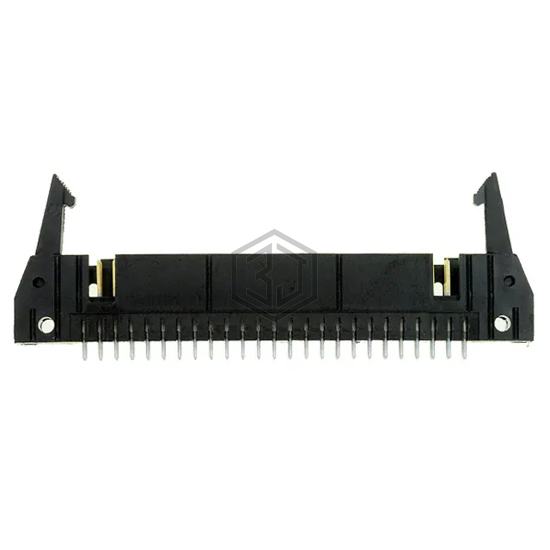

CONN HEADER VERT 50POS 2.54MM
1-499206-0 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 50POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 105°C, voltage rating 250VAC, current rating (amps) 1A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | 0.639" (16.23mm) |
| Insulation Height | 0.549" (13.94mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | - |
| Insulation Material | - |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 250VAC |
Submit your RFQ for 1-499206-0 and get a quote within 24 hours.
