TE Connectivity AMP Connectors

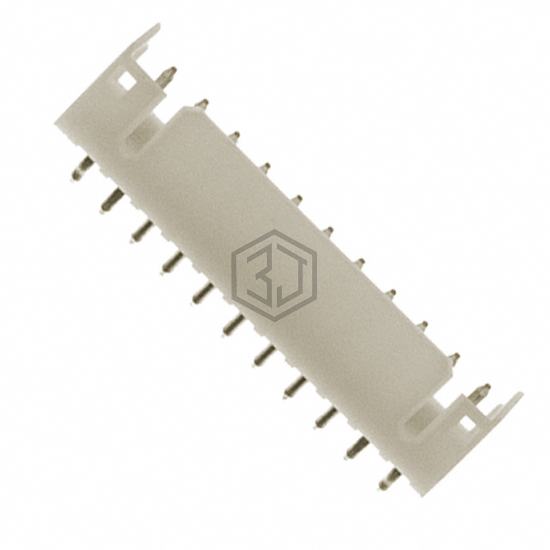

CONN HEADER VERT 11POS 2MM
1-292161-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 11POS 2MM. Key specifications: mounting type Through Hole, voltage rating 125VAC, contact material Brass, current rating (amps) Varies by Wire Gauge.
In Stock: 6,251
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.177" (4.50mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 0.370" (9.40mm) |
| Insulation Height | 0.268" (6.80mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 125VAC |
Submit your RFQ for 1-292161-1 and get a quote within 24 hours.
