TE Connectivity AMP Connectors

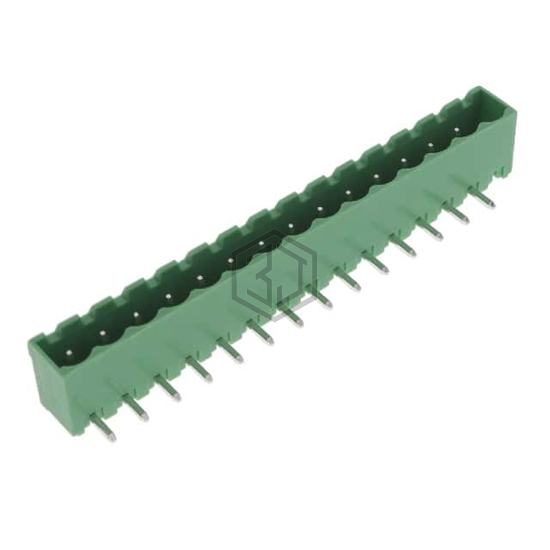

15POS HEADER 90 DEG 5.00MM TA
1-2350513-5 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by TE Connectivity AMP Connectors. 15POS HEADER 90 DEG 5.00MM TA. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, color Green, termination style Solder.
In Stock: 2,293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 15 |
| Positions Per Level | 15 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 16 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for 1-2350513-5 and get a quote within 24 hours.
