TE Connectivity AMP Connectors
CONN IC DIP SOCKET 28POS TIN

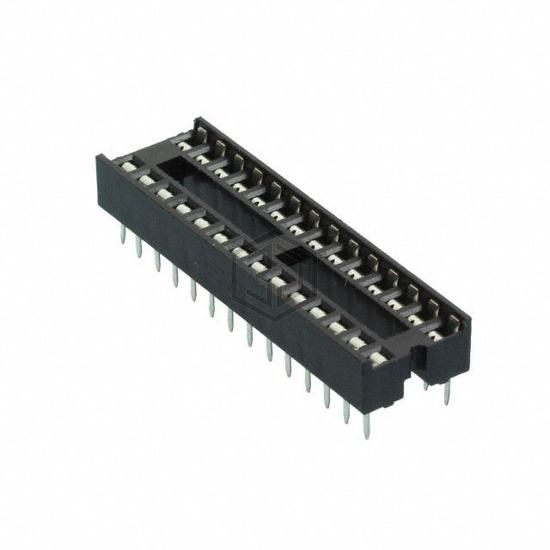

1-2199298-9 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN IC DIP SOCKET 28POS TIN. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, housing material Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled, termination Solder.
In Stock: 7,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Brass, Copper |
| Housing Material | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for 1-2199298-9 and get a quote within 24 hours.
