TE Connectivity AMP Connectors

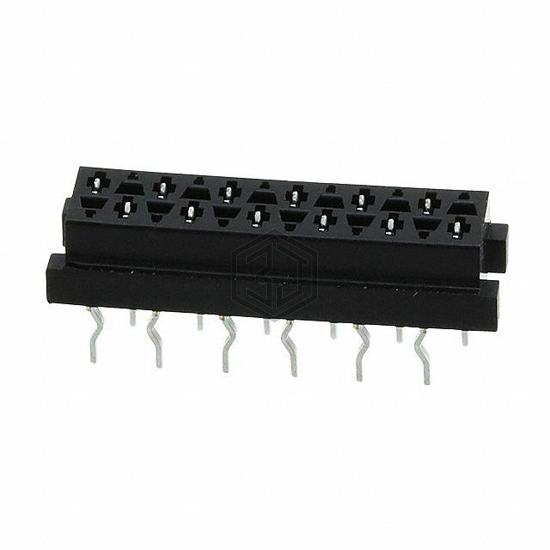

CONN RCPT 12POS 0.1 TIN PCB
1-2178710-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 12POS 0.1 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage rating 100VDC, termination Kinked Pin, Solder.
In Stock: 12,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Insulation Color | Black |
| Insulation Height | 0.157" (4.00mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 100VDC |
Submit your RFQ for 1-2178710-2 and get a quote within 24 hours.
