TE Connectivity AMP Connectors

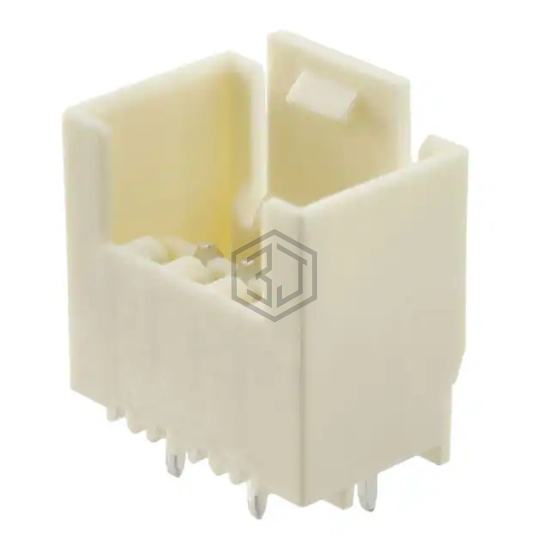

CONN HEADER VERT 4POS 2.5MM
1-1971817-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 120°C, contact material Copper Alloy, termination Solder.
In Stock: 3,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | - |
| Insulation Height | 0.610" (15.49mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Glow Wire Compliant |
| Operating Temperature | -40°C ~ 120°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
