TE Connectivity AMP Connectors
10POS HEADER ASSEMBLY FOR GIC 2.

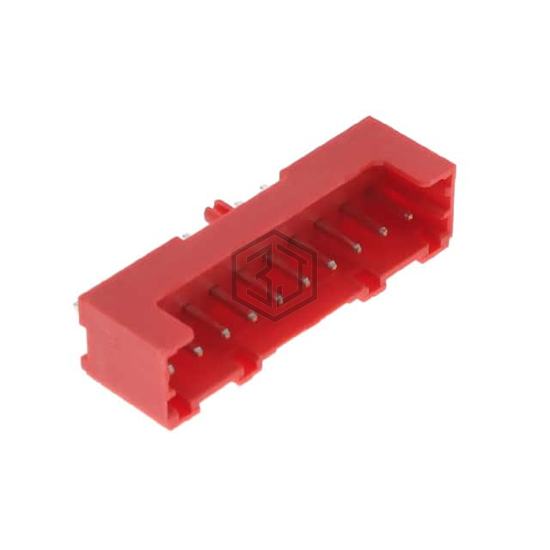

1-1971032-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. 10POS HEADER ASSEMBLY FOR GIC 2.. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 105°C, voltage rating 50V, contact material Brass.
In Stock: 3,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.102" (2.60mm) |
| Overall Contact Length | - |
| Insulation Height | 0.256" (6.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Lock |
| Operating Temperature | -30°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Red |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 50V |
Submit your RFQ for 1-1971032-1 and get a quote within 24 hours.
