TE Connectivity AMP Connectors

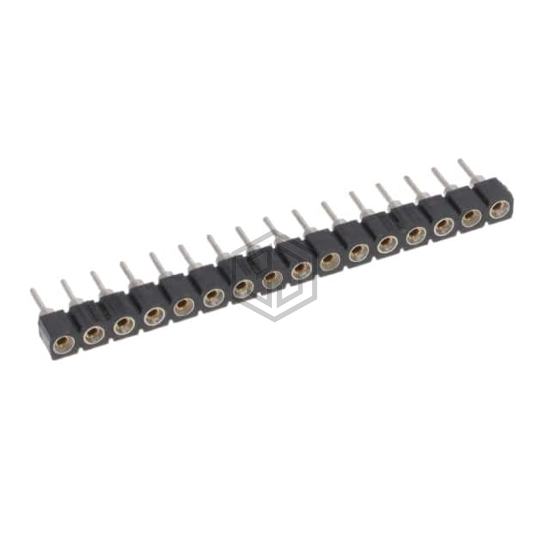

CONN SOCKET SIP 16POS GOLD
1-1814655-1 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN SOCKET SIP 16POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Thermoplastic, Polyester, termination Solder.
In Stock: 7,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SIP |
| Number of Positions or Pins (Grid) | 16 (1 x 16) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) |
| Contact Material - Post | Brass |
| Housing Material | Thermoplastic, Polyester |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 1-1814655-1 and get a quote within 24 hours.
