TE Connectivity AMP Connectors
CONN HEADER VERT 42POS 5MM

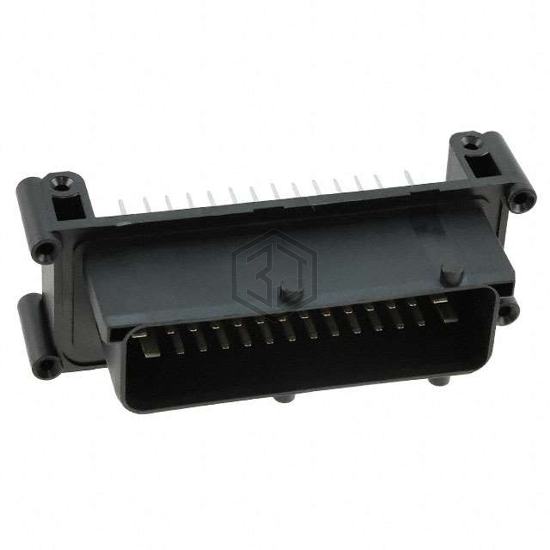

1-1718093-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 42POS 5MM. Key specifications: mounting type Through Hole, contact material Copper Alloy, termination Solder, number of positions 42.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Tab |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 42 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | 0.315" (8.00mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 1.461" (37.10mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 1-1718093-1 and get a quote within 24 hours.
