TE Connectivity AMP Connectors
CONN RCPT 26POS 0.1 GOLD SMD

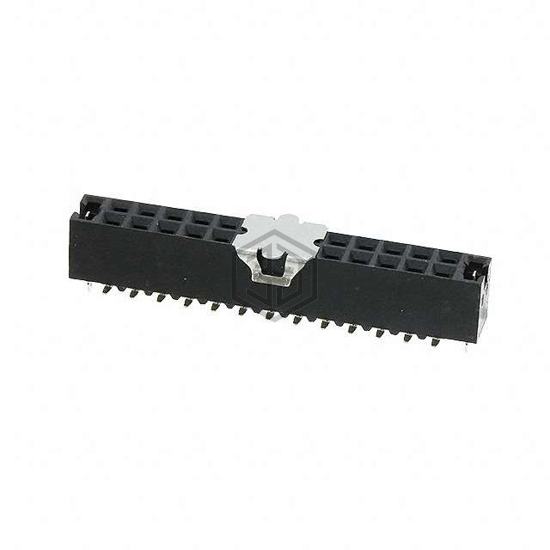

1-147102-3 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 26POS 0.1 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 125°C, current rating (amps) 2A, termination Solder.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.265" (6.73mm) |
| Contact Length - Post | - |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Lock, Pick and Place |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for 1-147102-3 and get a quote within 24 hours.
