TE Connectivity AMP Connectors
CONN HEADER VERT 62POS

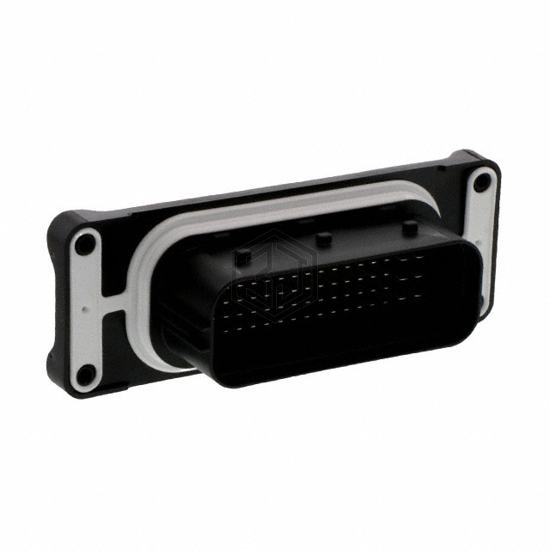

1-1418362-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 62POS. Key specifications: mounting type Through Hole, contact material Copper Alloy, termination Solder, number of positions 62.
In Stock: 772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | - |
| Number of Positions | 62 |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.264" (6.70mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Mounting Flange, Sealed |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 1-1418362-1 and get a quote within 24 hours.
