958 RECEPTACLE, ANGLED

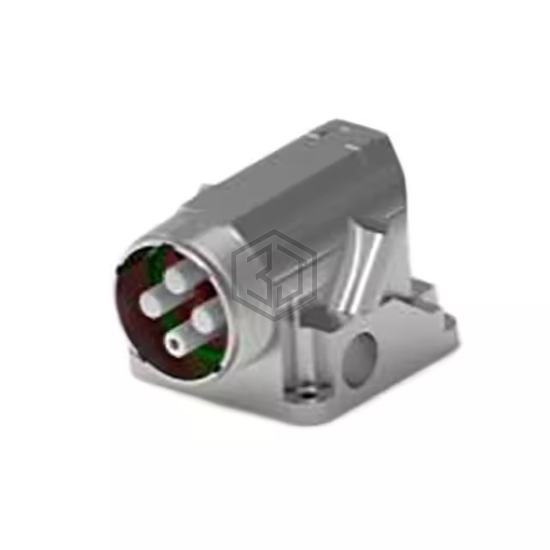

DEWC611MT03000001000 is a Circular Connectors manufactured by TE Intercontec. 958 RECEPTACLE, ANGLED. Key specifications: mounting type Panel Mount, Right Angle, operating temperature -20°C ~ 130°C, voltage rating 630VAC/DC, color Silver.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 4 (3 Power + PE) |
| Shell Size - Insert | M58-4 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount, Right Angle |
| Mounting Feature | Flange |
| Termination | Screw |
| Fastening Type | Push-Twist |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | Chromate |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | IP66/IP67 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 150A |
| Voltage Rating | 630VAC/DC |
| Cable Opening | - |
| Operating Temperature | -20°C ~ 130°C |
Submit your RFQ for DEWC611MT03000001000 and get a quote within 24 hours.
