TE Connectivity Passive Product
CAP ALUM 220UF 20% 35V SMD

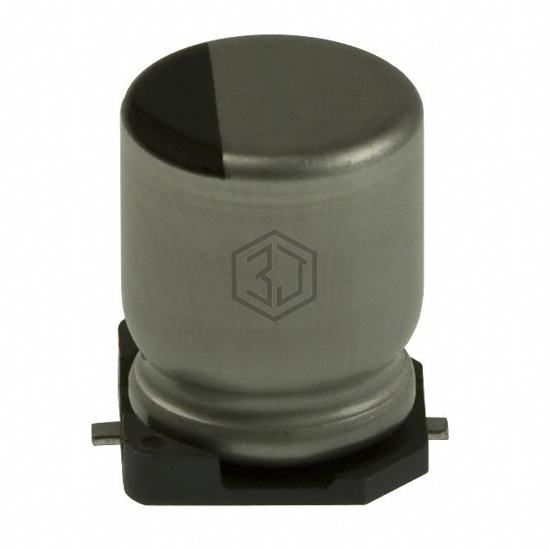

TYEH1V227H10MTR is a Aluminum Electrolytic Capacitors manufactured by TE Connectivity Passive Product. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,877
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 324 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
TYEH1V227H10MTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWG1V221MNL1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 99% | View |
| 35TZV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 97% | View |
| UCM1H221MNS1GS | Nichicon | CAP ALUM 50V POLAR | 84% | View |
| MVE50VC221MJ10TP | United Chemi-Con | CAP ALUM 220UF 20% 50V SMD | 81% | View |
| UUD1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 74% | View |
| 6.3TZV220M6.3X8 | Rubycon | CAP ALUM 220UF 20% 6.3V SMD | 52% | View |
Submit your RFQ for TYEH1V227H10MTR and get a quote within 24 hours.
