TE Connectivity Passive Product

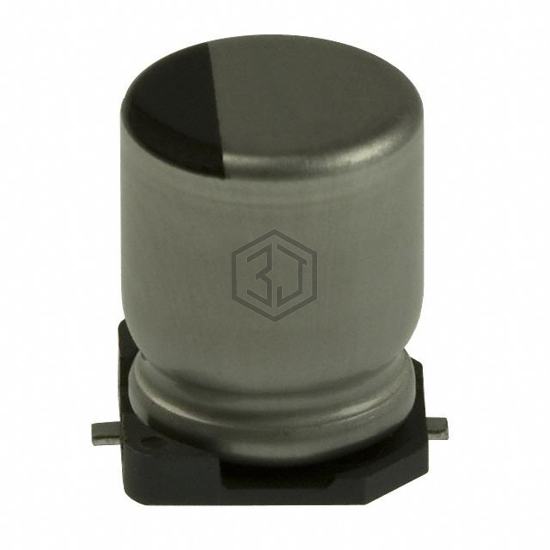

CAP ALUM 33UF 20% 10V SMD
TYEH1A336E55MTR is a Aluminum Electrolytic Capacitors manufactured by TE Connectivity Passive Product. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 31 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1A330MCL1GS | Nichicon | CAP ALUM 33UF 20% 10V SMD | 96% | View |
| EMZA100ARA330MD61G | Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 95% | View |
| EDH336M010A9DAA | KEMET | CAP ALUM 33UF 20% 10V SMD | 88% | View |
| EMVY6R3ADA330ME55G | United Chemi-Con | CAP ALUM 33UF 20% 6.3V SMD | 74% | View |
| 336SVL025MEW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 25V SMD | 56% | View |
| UUA1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 52% | View |
