TE Connectivity Passive Product
RES 0.024 OHM 1% 1/2W 1206

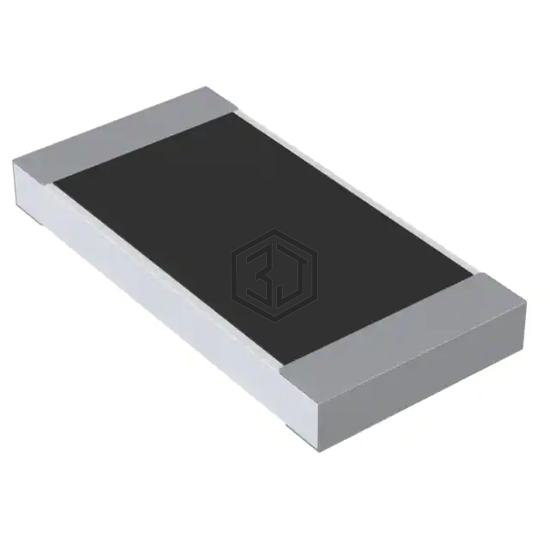

TLM2BDR024FTD is a Chip Resistor - Surface Mount manufactured by TE Connectivity Passive Product. RES 0.024 OHM 1% 1/2W 1206. Key specifications: operating temperature -55°C ~ 155°C, package / case 1206 (3216 Metric), size / dimension 0.120" L x 0.061" W (3.05mm x 1.55mm), power (watts) 0.5W, 1/2W.
In Stock: 7,812
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 24 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.120" L x 0.061" W (3.05mm x 1.55mm) |
| Height - Seated (Max) | 0.029" (0.73mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PE0805FRF470R024L | YAGEO | RES 0.024 OHM 1% 1/2W 0805 | 96% | View |
| CSRF0805JT24L0 | Stackpole Electronics Inc | RES 0.024 OHM 5% 1/2W 0805 | 96% | View |
| PE0805FRM470R024L | YAGEO | RES 0.024 OHM 1% 1/2W 0805 | 96% | View |
| CSRF0805FT24L0 | Stackpole Electronics Inc | RES 0.024 OHM 1% 1/2W 0805 | 96% | View |
| WFCP0603R0240FE66 | Vishay Dale | RES 0.024 OHM .5 W 1% 0603 SMD | 93% | View |
| WFCP0508R0240FE66 | Vishay Dale | RES 0.024 OHM .5 W 1% 0508 SMD | 92% | View |
Submit your RFQ for TLM2BDR024FTD and get a quote within 24 hours.
