TE Connectivity Passive Product
RES 0.02 OHM 1% 1/2W 1206

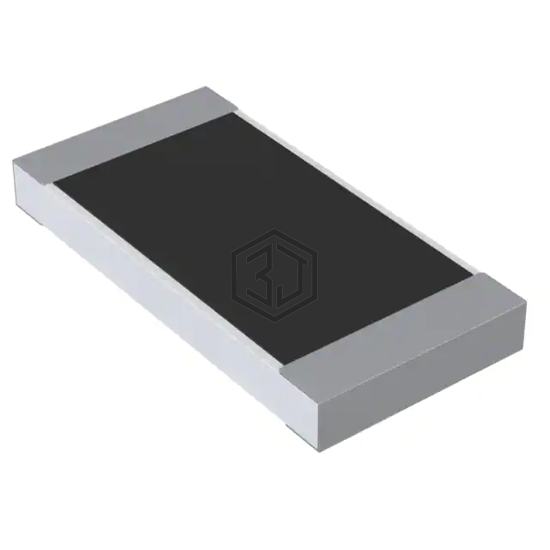

TLM2BDR020FTD is a Chip Resistor - Surface Mount manufactured by TE Connectivity Passive Product. RES 0.02 OHM 1% 1/2W 1206. Key specifications: operating temperature -55°C ~ 155°C, package / case 1206 (3216 Metric), size / dimension 0.120" L x 0.061" W (3.05mm x 1.55mm), power (watts) 0.5W, 1/2W.
In Stock: 3,420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 20 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.120" L x 0.061" W (3.05mm x 1.55mm) |
| Height - Seated (Max) | 0.029" (0.73mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PE1206DRF7W0R02L | YAGEO | RES 0.02 OHM 0.5% 1/2W 1206 | 100% | View |
| PE0603FRF570R02L | YAGEO | RES 0.02 OHM 1% 1/2W 0603 | 93% | View |
| CFN0603-FZ-R020ELF | Bourns Inc. | RESMETALFOIL 0603 R020 1% 0.5W T | 93% | View |
| WFCP0508R0200FE66 | Vishay Dale | RES 0.02 OHM .5 W 1% 0508 SMD | 92% | View |
| PE0805FRF7T0R02L | YAGEO | RES 0.02 OHM 1% 1/3W 0805 | 78% | View |
| CFN1206AFX-R020ELF | Bourns Inc. | RESMETALFOIL A 1206 R020 1% 1W T | 69% | View |
Submit your RFQ for TLM2BDR020FTD and get a quote within 24 hours.
