TE Connectivity Passive Product
RES 0.047 OHM 1% 1/4W 0805

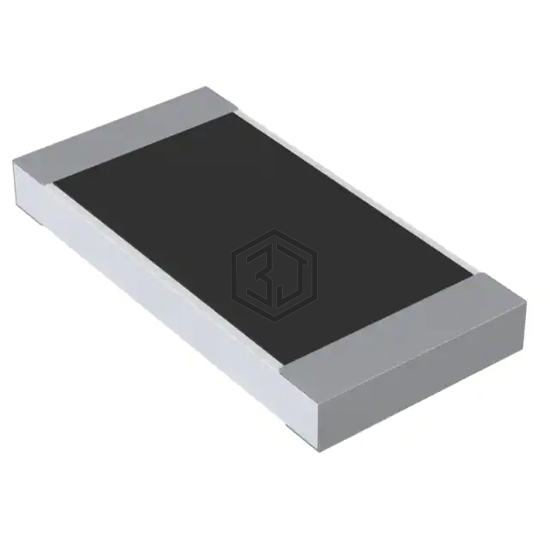

TLM2ADR047FTD is a Chip Resistor - Surface Mount manufactured by TE Connectivity Passive Product. RES 0.047 OHM 1% 1/4W 0805. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), power (watts) 0.25W, 1/4W.
In Stock: 5,936
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 47 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PE0603FRF7W0R047L | YAGEO | RES 0.047 OHM 1% 1/5W 0603 | 87% | View |
| PE0603JRF7T0R047L | YAGEO | RES 0.047 OHM 5% 1/3W 0603 | 85% | View |
| PE1206DRM7W0R047L | YAGEO | RES 0.047 OHM 0.5% 1/2W 1206 | 65% | View |
| WFC1206R0470FE66 | Vishay Dale | RES 0.047 OHM 1.0 W 1% 1206 SMD | 65% | View |
| PE2512DKM070R047L | YAGEO | RES 0.047 OHM 0.5% 1W 2512 | 58% | View |
| PE2512FKE070R047L | YAGEO | RES 0.047 OHM 1% 1W 2512 | 58% | View |
Submit your RFQ for TLM2ADR047FTD and get a quote within 24 hours.
