TE Connectivity Passive Product
FIXED IND 120NH 650MA 630MOHM SM

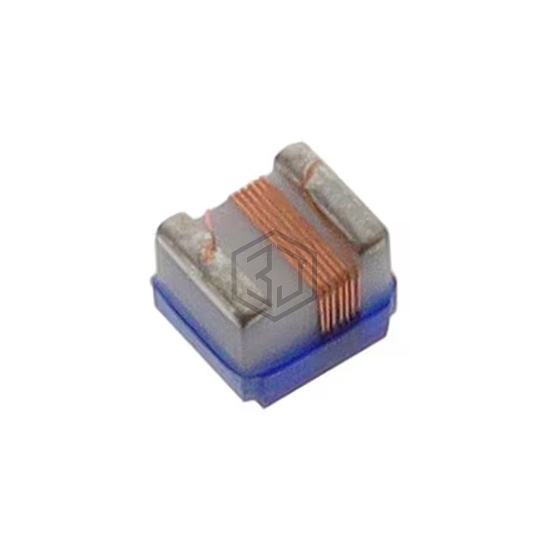

36502CR12JTDG is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 120NH 650MA 630MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 650 mA.
In Stock: 3,344
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 120 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 630mOhm Max |
| Q @ Freq | 60 @ 350MHz |
| Frequency - Self Resonant | 950MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Submit your RFQ for 36502CR12JTDG and get a quote within 24 hours.
