TE Connectivity Passive Product
FIXED IND 33NH 600MA 220MOHM SMD

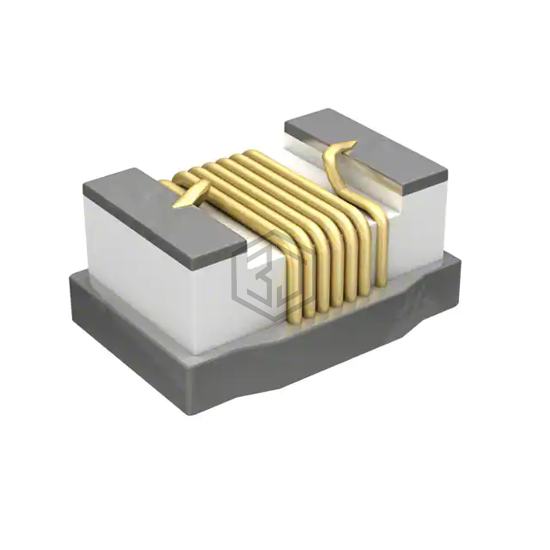

36501J33NJTDG is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 33NH 600MA 220MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 600 mA.
In Stock: 955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 33 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 40 @ 250MHz |
| Frequency - Self Resonant | 2.3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
