TE Connectivity Passive Product

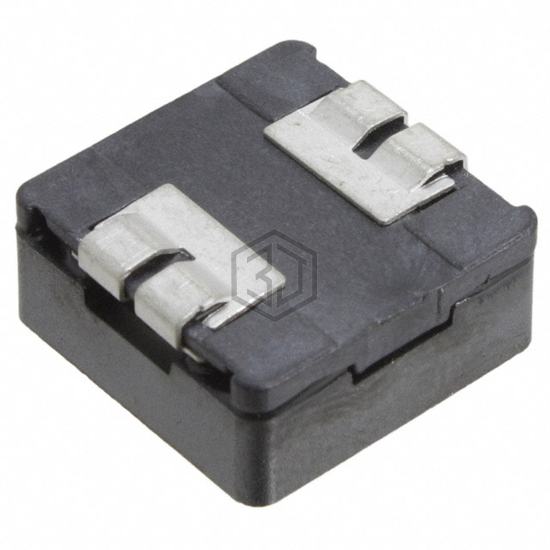

FIXED IND 100UH 1.1A 220MOHM SMD
3631B101LL is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 100UH 1.1A 220MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.1 A.
In Stock: 868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for 3631B101LL and get a quote within 24 hours.
