TE Connectivity Passive Product
FIXED IND 220NH 665MA 250MOHM SM

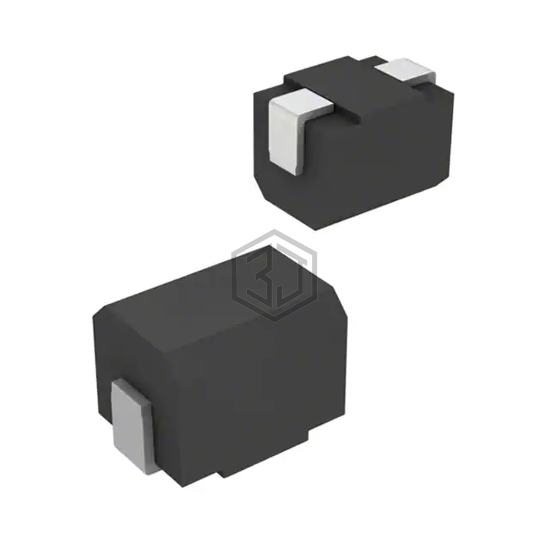

3613CR22M is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 220NH 665MA 250MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, package / case 1812 (4532 Metric), current rating (amps) 665 mA.
In Stock: 2,449
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 665 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 40 @ 25.2MHz |
| Frequency - Self Resonant | 200MHz |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for 3613CR22M and get a quote within 24 hours.
