TE Connectivity Passive Product
FIXED IND 3.3UH 355MA 800MOHM SM

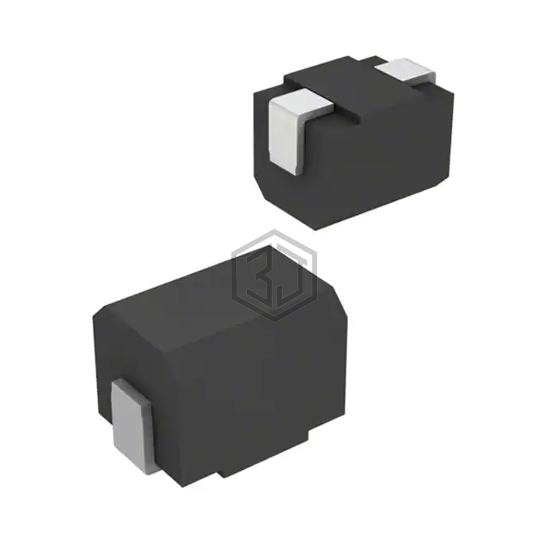

3613C3R3K is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 3.3UH 355MA 800MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, package / case 1812 (4532 Metric), current rating (amps) 355 mA.
In Stock: 1,106
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 355 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 800mOhm Max |
| Q @ Freq | 50 @ 7.96MHz |
| Frequency - Self Resonant | 45MHz |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
