TE Connectivity Passive Product
FIXED IND 0.9NH 300MA 300MOHM SM

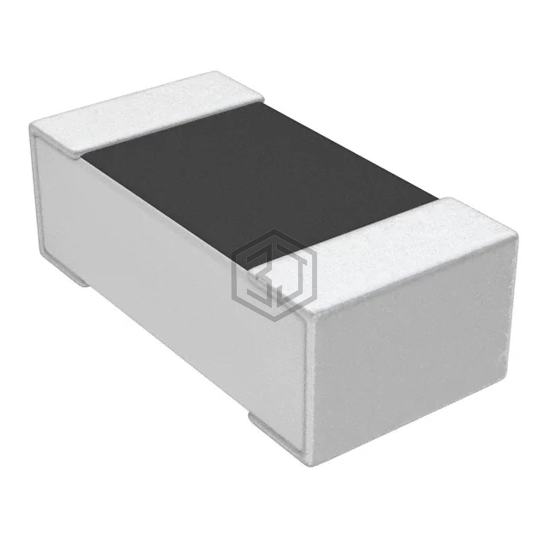

2176075-9 is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 0.9NH 300MA 300MOHM SM. Key specifications: mounting type Surface Mount, package / case 0201 (0603 Metric), current rating (amps) 300 mA, size / dimension 0.024" L x 0.012" W (0.60mm x 0.30mm).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 0.9 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 9GHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 2176075-9 and get a quote within 24 hours.
