TE Connectivity ALCOSWITCH Switches
MUSA SW PPL STD 0.1A VAC DT LEAD

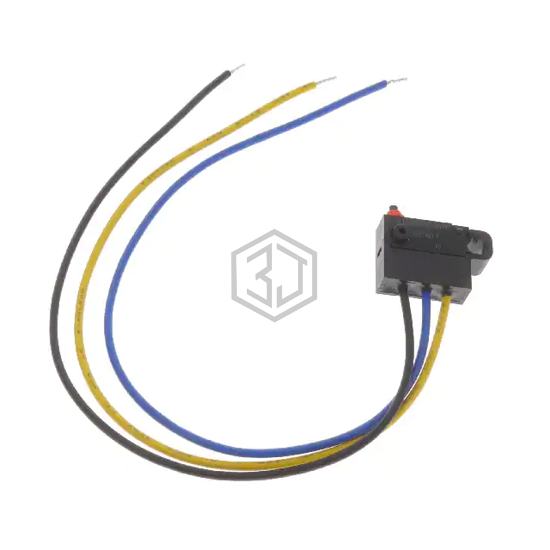

SAJ501YPP0STDSDTFLQ is a Limit Switches manufactured by TE Connectivity ALCOSWITCH Switches. MUSA SW PPL STD 0.1A VAC DT LEAD. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 48 V, current rating (amps) 100mA (AC/DC).
In Stock: 1,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 100mA (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Force | 130gf |
| Release Force | 13gf |
| Pretravel | 0.037" (0.94mm) |
| Differential Travel | 0.008" (0.2mm) |
| Overtravel | 0.031" (0.79mm) |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for SAJ501YPP0STDSDTFLQ and get a quote within 24 hours.
