TE Connectivity ALCOSWITCH Switches
SWITCH ROTARY 2-12POS 0.4VA 20V

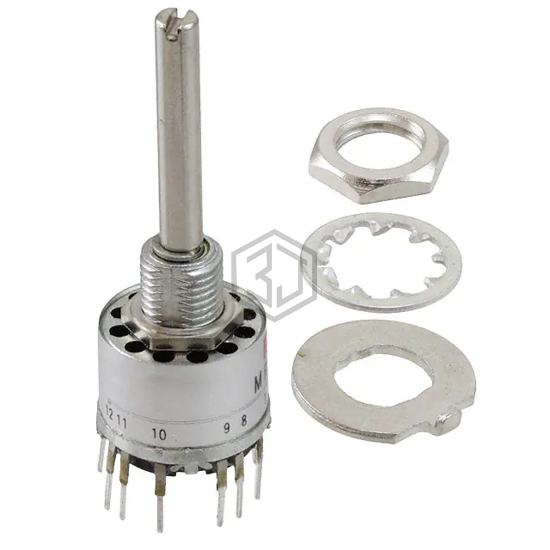

MRJ11204 is a Rotary Switches manufactured by TE Connectivity ALCOSWITCH Switches. SWITCH ROTARY 2-12POS 0.4VA 20V. Key specifications: mounting type Panel Mount, Through Hole, voltage rating - dc 20 V, contact material Nickel, current rating (amps) 0.4VA (AC/DC).
In Stock: 653
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 2 ~ 12 |
| Index Stops | Adjustable |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Circuit per Deck | SP12T |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Actuator Type | Round (3.17mm Dia), Slotted |
| Actuator Length | 19.00mm |
| Angle of Throw | 30° |
| Contact Material | Nickel |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Depth Behind Panel | 11.20mm |
Submit your RFQ for MRJ11204 and get a quote within 24 hours.
