TE Connectivity ALCOSWITCH Switches

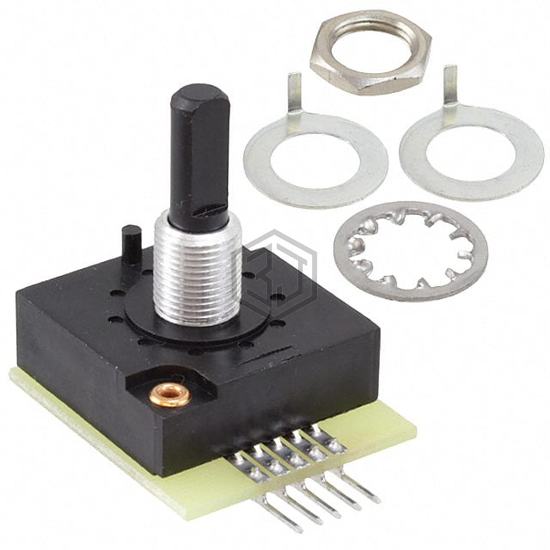

SWITCH ROTARY 10POS 125MA 115V
436022-1 is a Rotary Switches manufactured by TE Connectivity ALCOSWITCH Switches. SWITCH ROTARY 10POS 125MA 115V. Key specifications: mounting type Panel Mount, Through Hole, voltage rating - ac 115 V, contact material Phosphor Bronze, current rating (amps) 125mA (AC).
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 10 |
| Index Stops | Continuous |
| Number of Decks | 1 |
| Number of Poles per Deck | - |
| Circuit per Deck | BCD Complement |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 125mA (AC) |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | - |
| Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 14.88mm |
| Angle of Throw | 36° |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pin |
| Features | - |
| Depth Behind Panel | 13.34mm |
