TE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 1A 5VDC

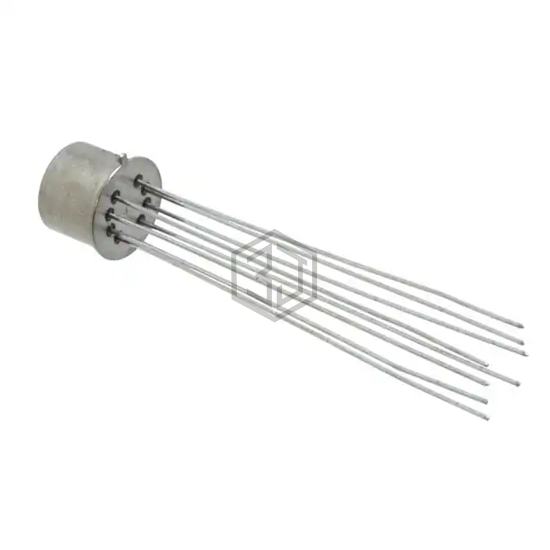

JMACD-5XP is a Signal Relays, Up to 2 Amps manufactured by TE Connectivity Aerospace, Defense and Marine. RELAY GEN PURPOSE DPDT 1A 5VDC. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, contact material Silver Palladium (AgPd), Gold (Au), termination style PC Pin.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 2.7 VDC |
| Must Release Voltage | 0.22 VDC |
| Operate Time | 2 ms |
| Release Time | 4 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for JMACD-5XP and get a quote within 24 hours.
