TE Connectivity Aerospace, Defense and Marine

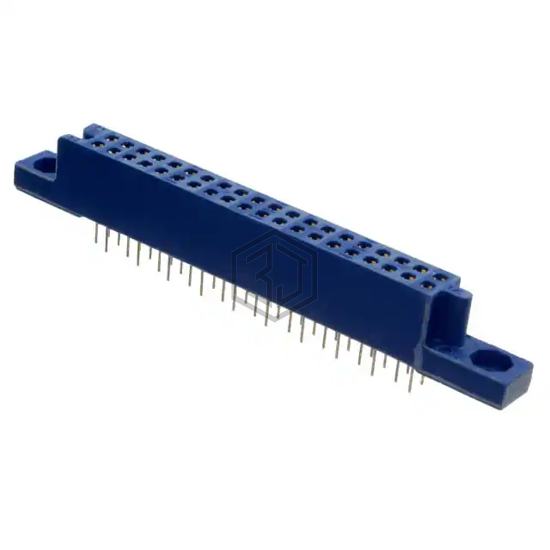

CONN RCPT 40POS 0.1 GOLD PCB
530340-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity Aerospace, Defense and Marine. CONN RCPT 40POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, termination Solder, number of positions 40, connector type Receptacle.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Blue |
| Insulation Height | 0.400" (10.16mm) |
| Contact Length - Post | 0.156" (3.96mm) |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mating Guide |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 530340-2 and get a quote within 24 hours.
