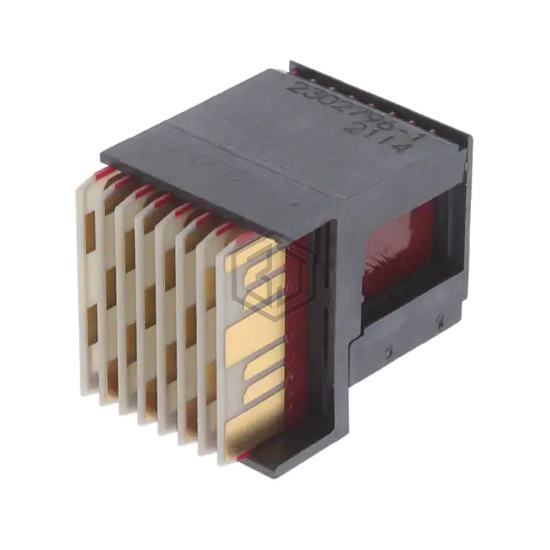

2302796-1 - TE Connectivity Aerospace, Defense and Marine - Backplane Connectors - Specialized

2302796-1

TE Connectivity Aerospace, Defense and Marine

RAPLUGASSY,LEFTEND,HALF,RTM,VPX,

2302796-1 is a Backplane Connectors - Specialized manufactured by TE Connectivity Aerospace, Defense and Marine. RAPLUGASSY,LEFTEND,HALF,RTM,VPX,. Key specifications: mounting type Board Edge, Through Hole, Right Angle, color Black, termination Press-Fit, number of positions 56.

In Stock: 75

Product Attributes

AttributeValue
Product StatusActive
Connector UsageDaughtercard
Connector TypePlug, Male Blades
Connector StyleVITA 46, Half, Left End
Number of Positions56
Number of Positions LoadedAll
Pitch0.071" (1.80mm)
Number of Rows7
Number of Columns8
Mounting TypeBoard Edge, Through Hole, Right Angle
TerminationPress-Fit
Contact Layout, Typical16 Signal Pairs, 4 Single Signal, 20 Ground
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness50.0µin (1.27µm)
ColorBlack

Frequently Asked Questions

2302796-1 is a Backplane Connectors - Specialized manufactured by TE Connectivity Aerospace, Defense and Marine. RAPLUGASSY,LEFTEND,HALF,RTM,VPX,

The mounting type of 2302796-1 is Board Edge, Through Hole, Right Angle.

The color of 2302796-1 is Black.

The termination type of 2302796-1 is Press-Fit.

The pitch of 2302796-1 is 0.071" (1.80mm).
