TE Connectivity Aerospace, Defense and Marine
RAPLUGASSYCENTERRP0RTMVPXMGRT3

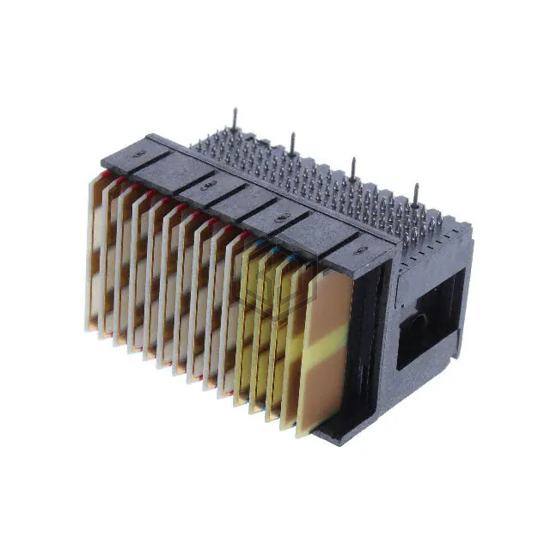

2302794-1 is a Backplane Connectors - Specialized manufactured by TE Connectivity Aerospace, Defense and Marine. RAPLUGASSYCENTERRP0RTMVPXMGRT3. Key specifications: mounting type Board Edge, Through Hole, Right Angle, color Black, termination Press-Fit, number of positions 112.
In Stock: 125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | VITA 46, Center |
| Number of Positions | 112 |
| Number of Positions Loaded | 105 |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 7 |
| Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | 20 Signal Pairs, 20 Signal, 4 Power, 31 Ground |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | Black |
Submit your RFQ for 2302794-1 and get a quote within 24 hours.
