TE Connectivity Aerospace, Defense and Marine

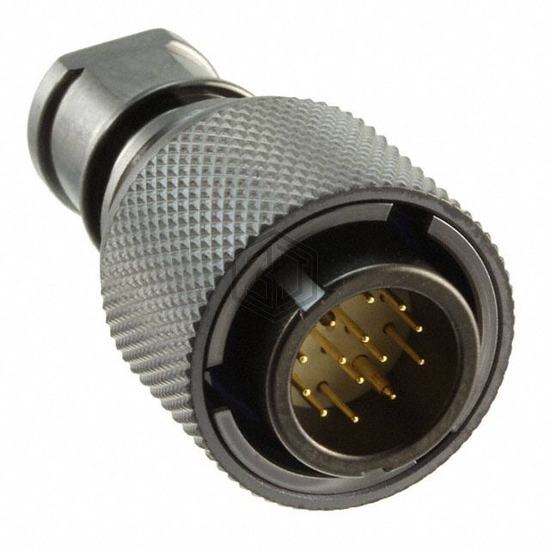

BAYONET 14P PLUG PS S-CUP CONT K
2201481-1 is a Circular Connectors manufactured by TE Connectivity Aerospace, Defense and Marine. BAYONET 14P PLUG PS S-CUP CONT K. Key specifications: mounting type Free Hanging (In-Line), operating temperature -50°C ~ 150°C, voltage rating 200V, current rating (amps) 2A.
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 14 (12 + 2 Power) |
| Shell Size - Insert | M15-14 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Sulfur Nickel |
| Contact Finish - Mating | Gold |
| Color | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | - |
| Shielding | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 200V |
| Cable Opening | - |
| Operating Temperature | -50°C ~ 150°C |
