TE Connectivity Aerospace, Defense and Marine

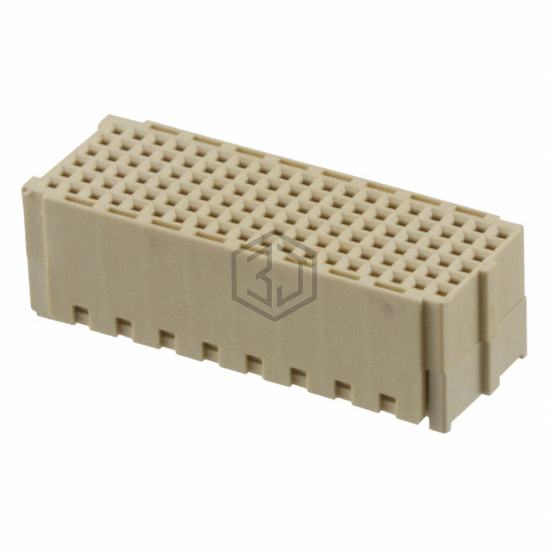

CONN RCPT 114POS 0.05 GOLD SMD
2102061-3 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity Aerospace, Defense and Marine. CONN RCPT 114POS 0.05 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 250VAC, termination Solder.
In Stock: 1,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 114 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 6 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Natural |
| Insulation Height | 0.315" (8.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | 12mm |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | - |
| Voltage Rating | 250VAC |
Submit your RFQ for 2102061-3 and get a quote within 24 hours.
