TE Connectivity Aerospace, Defense and Marine
CONN HEADER SMD 114POS 1.27MM

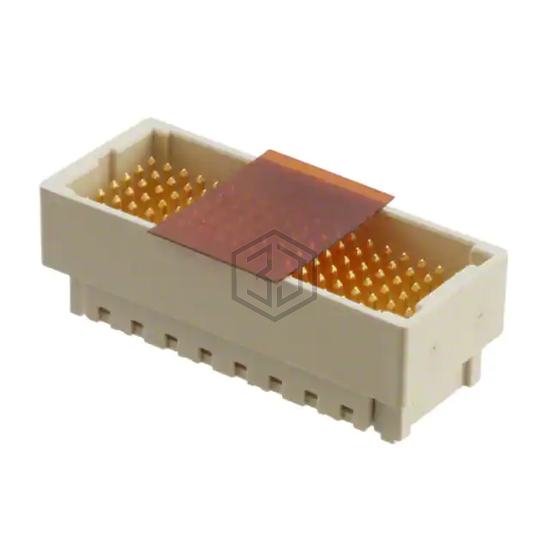

2102060-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity Aerospace, Defense and Marine. CONN HEADER SMD 114POS 1.27MM. Key specifications: mounting type Surface Mount, contact material Phosphor Bronze, termination Solder, number of positions 114.
In Stock: 1,390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 114 |
| Number of Rows | 6 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.360" (9.14mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 2102060-1 and get a quote within 24 hours.
