TE Connectivity Aerospace, Defense and Marine
CONN HEADER BRD EDGE 100P 1.27MM

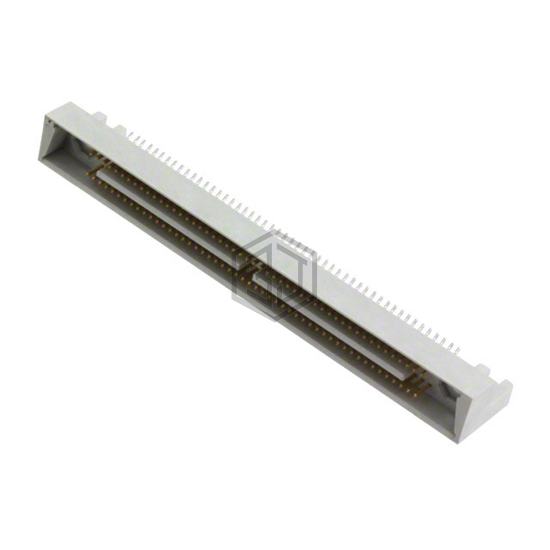

2-531803-0 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity Aerospace, Defense and Marine. CONN HEADER BRD EDGE 100P 1.27MM. Key specifications: mounting type Board Edge, Straddle Mount, termination Solder, number of positions 100, connector type Header.
In Stock: 448
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.150" (3.81mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Board Edge, Straddle Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.140" (3.56mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Square |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead |
| Contact Material | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Card Extender, Mating Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 2-531803-0 and get a quote within 24 hours.
