TE Connectivity Aerospace, Defense and Marine

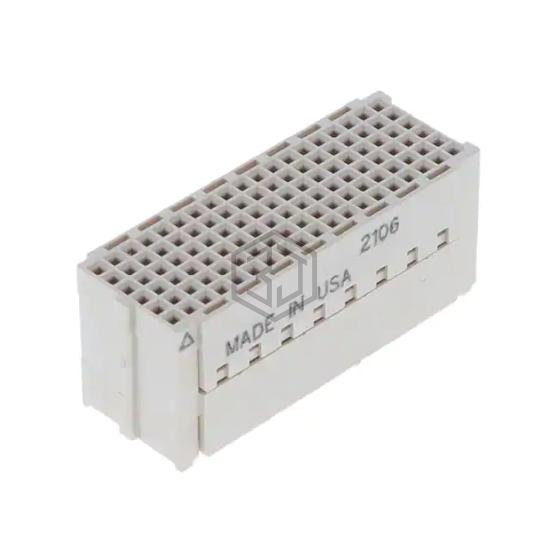

MEZALOK SOCKET, 114P
1-2102061-8 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity Aerospace, Defense and Marine. MEZALOK SOCKET, 114P. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 250VAC, current rating (amps) 1.5A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 114 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 6 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Natural |
| Insulation Height | 0.669" (17.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 250VAC |
Submit your RFQ for 1-2102061-8 and get a quote within 24 hours.
