TX 1 COIL 2 LYR 24UH

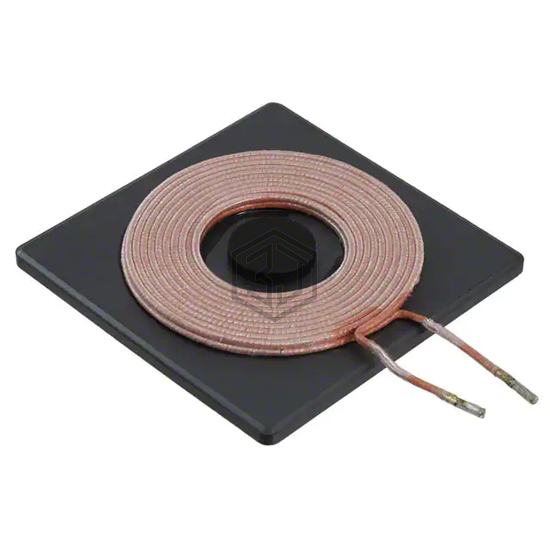

WT525225-20K2-A1-G is a Wireless Charging Coils manufactured by TDK Corporation. TX 1 COIL 2 LYR 24UH. Key specifications: operating temperature -30°C ~ 70°C, size / dimension 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm), tolerance ±10%.
In Stock: 218
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Inductance | 24µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | 80 @ 100kHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -30°C ~ 70°C |
| Size / Dimension | 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm) |
Submit your RFQ for WT525225-20K2-A1-G and get a quote within 24 hours.
