TX 3 COIL 1 LYR 12.5UH/11.5UH

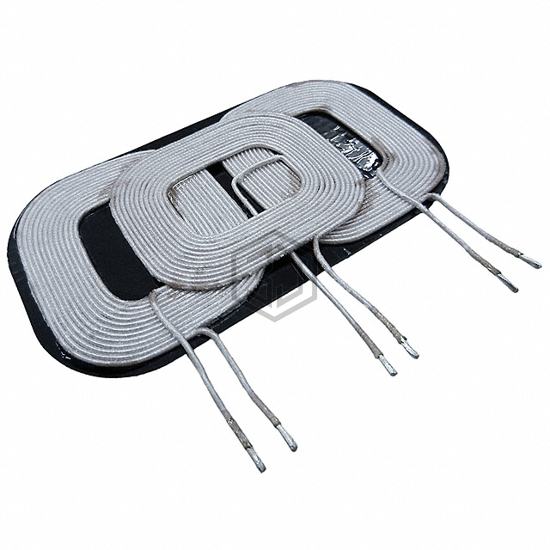

WT-1005660-12K2-A6-G is a Wireless Charging Coils manufactured by TDK Corporation. TX 3 COIL 1 LYR 12.5UH/11.5UH. Key specifications: operating temperature -30°C ~ 70°C, size / dimension 3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm), tolerance ±10%.
In Stock: 6,196
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Function | Transmitter |
| Type | 3 Coil, 1 Layer |
| Inductance | 12.5µH, 11.5µH, 12.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 70 @ 100kHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -30°C ~ 70°C |
| Size / Dimension | 3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm) |
Submit your RFQ for WT-1005660-12K2-A6-G and get a quote within 24 hours.
