FIXED IND 150UH 610MA 949MOHM SM

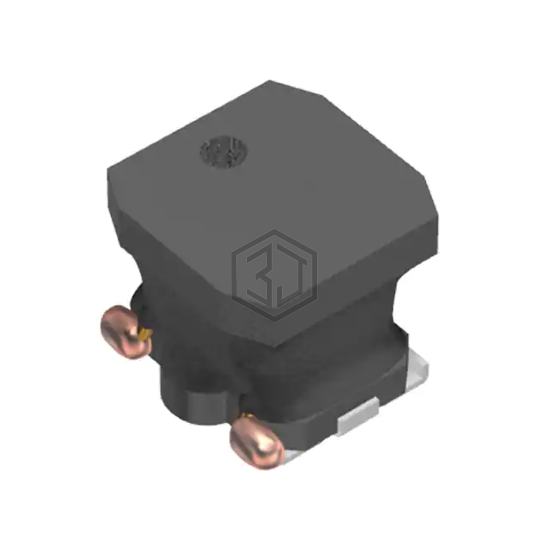

VLS5045EX-151M-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 150UH 610MA 949MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 610 mA.
In Stock: 129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 610 mA |
| Current - Saturation (Isat) | 560mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 949mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for VLS5045EX-151M-H and get a quote within 24 hours.
