FIXED IND 2.2UH 2.65A 64MOHM SMD

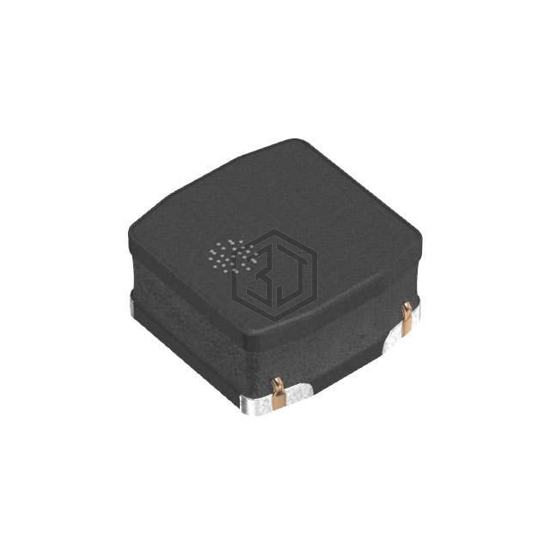

VLS3015CX-2R2M-1 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 2.2UH 2.65A 64MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 2.65 A.
In Stock: 49,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.65 A |
| Current - Saturation (Isat) | 1.71A |
| Shielding | Shielded |
| DC Resistance (DCR) | 64mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for VLS3015CX-2R2M-1 and get a quote within 24 hours.
