FIXED IND 4.7UH 810MA 204MOHM SM

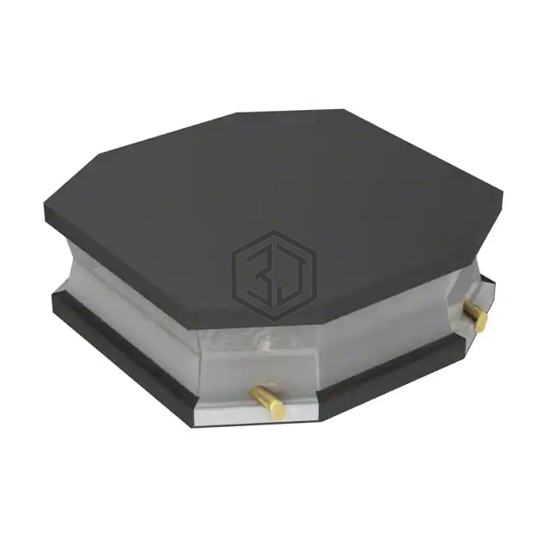

VLS3010ET-4R7M is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 4.7UH 810MA 204MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 810 mA.
In Stock: 3,753
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 810 mA |
| Current - Saturation (Isat) | 810mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 204mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for VLS3010ET-4R7M and get a quote within 24 hours.
