FIXED IND 6.8UH 730MA 480MOHM SM

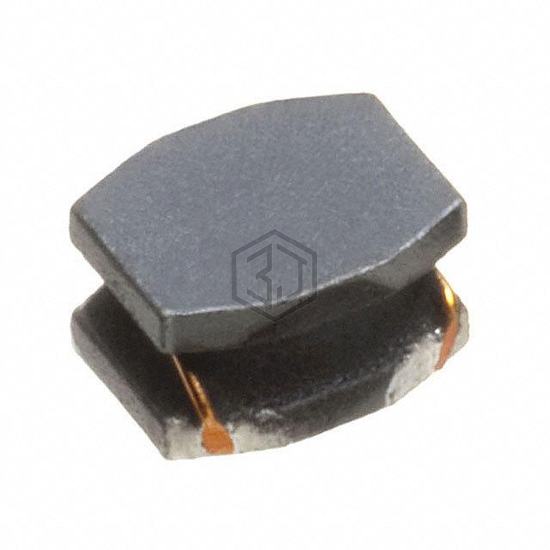

VLS252015ET-6R8M is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 6.8UH 730MA 480MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 1008 (2520 Metric), current rating (amps) 730 mA.
In Stock: 4,438
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 730 mA |
| Current - Saturation (Isat) | 850mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 480mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for VLS252015ET-6R8M and get a quote within 24 hours.
