FIXED IND 4.7UH 720MA 280MOHM SM

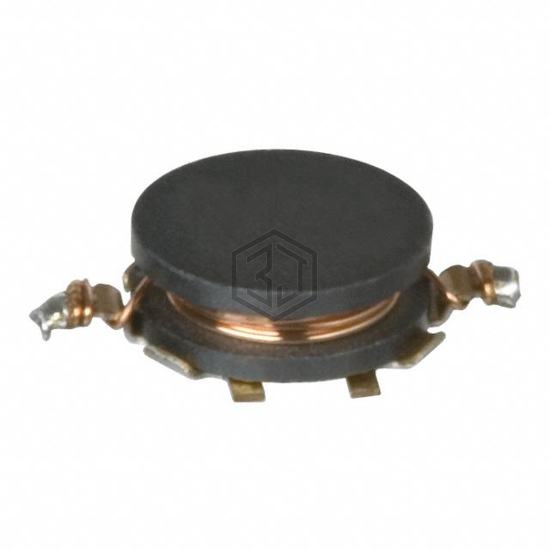

VLP4612T-4R7MR72 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 4.7UH 720MA 280MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 720 mA, size / dimension 0.181" L x 0.118" W (4.60mm x 3.00mm).
In Stock: 11,103
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 720 mA |
| Current - Saturation (Isat) | 880mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 280mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.181" L x 0.118" W (4.60mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
