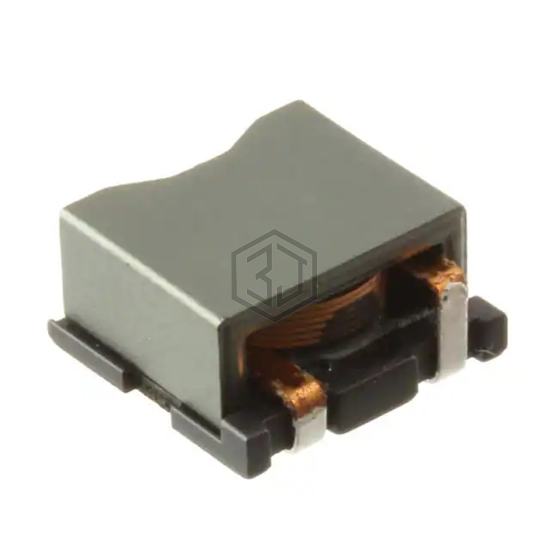

FIXED IND 700NH 12A 2.5 MOHM SMD
VLM10555T-R70M120-3 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 700NH 12A 2.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 383
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 700 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 26A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.417" L x 0.413" W (10.60mm x 10.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
Submit your RFQ for VLM10555T-R70M120-3 and get a quote within 24 hours.
