FIXED IND 6.8UH 2A 100 MOHM SMD

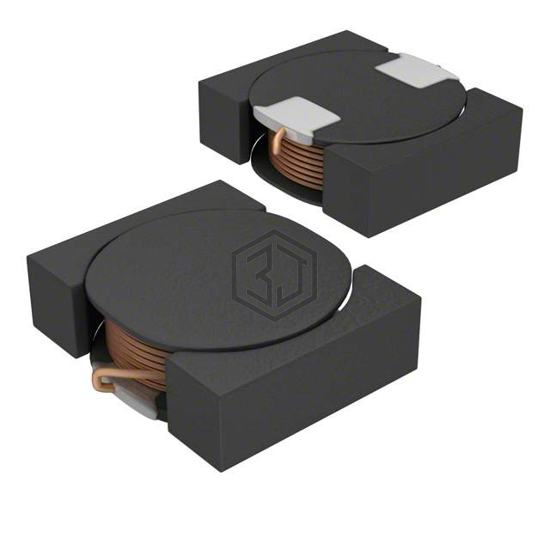

VLF504015MT-6R8M is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 6.8UH 2A 100 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 2 A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2 A |
| Current - Saturation (Isat) | 1.65A |
| Shielding | Shielded |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.157" W (5.00mm x 4.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for VLF504015MT-6R8M and get a quote within 24 hours.
